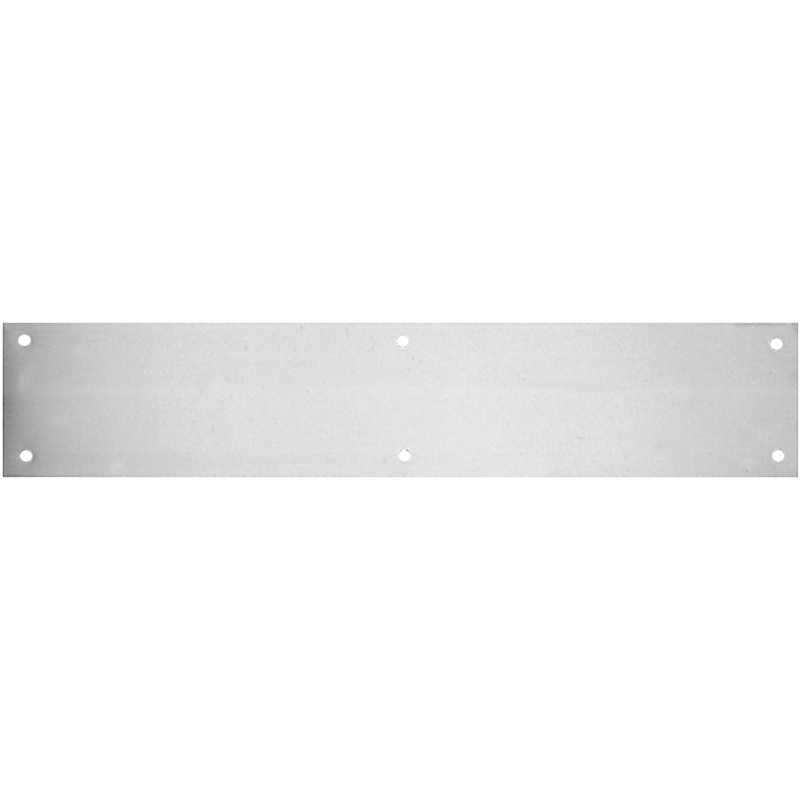

Sockelblech in Normgrössen, Aluminium edelstahlfinish
09.268.
Stärke 1,5 mm, ohne Schrauben
- Sockelbleche in Sondergrössen siehe 09.269.
- Schrauben LK Ø 3 mm siehe 69.070.13
18 Ausführungen
ungebohrt | 800 | 100 | -- | -- | |
ungebohrt | 1000 | 100 | -- | -- | |
ungebohrt | 1200 | 100 | -- | -- | |
ungebohrt | 800 | 120 | 102° | 25 / 95 | |
ungebohrt | 1000 | 120 | 102° | 25 / 95 | |
ungebohrt | 1200 | 120 | 102° | 25 / 95 | |
ungebohrt | 800 | 120 | 115° | 25 / 95 | |
ungebohrt | 1000 | 120 | 115° | 25 / 95 | |
ungebohrt | 1200 | 120 | 115° | 25 / 95 | |
gebohrt | 800 | 100 | -- | -- | |
gebohrt | 1000 | 100 | -- | -- | |
gebohrt | 1200 | 100 | -- | -- | |
gebohrt | 800 | 120 | 102° | 25 / 95 | |
gebohrt | 1000 | 120 | 102° | 25 / 95 | |
gebohrt | 1200 | 120 | 102° | 25 / 95 | |
gebohrt | 800 | 120 | 115° | 25 / 95 | |
gebohrt | 1000 | 120 | 115° | 25 / 95 | |
gebohrt | 1200 | 120 | 115° | 25 / 95 |
